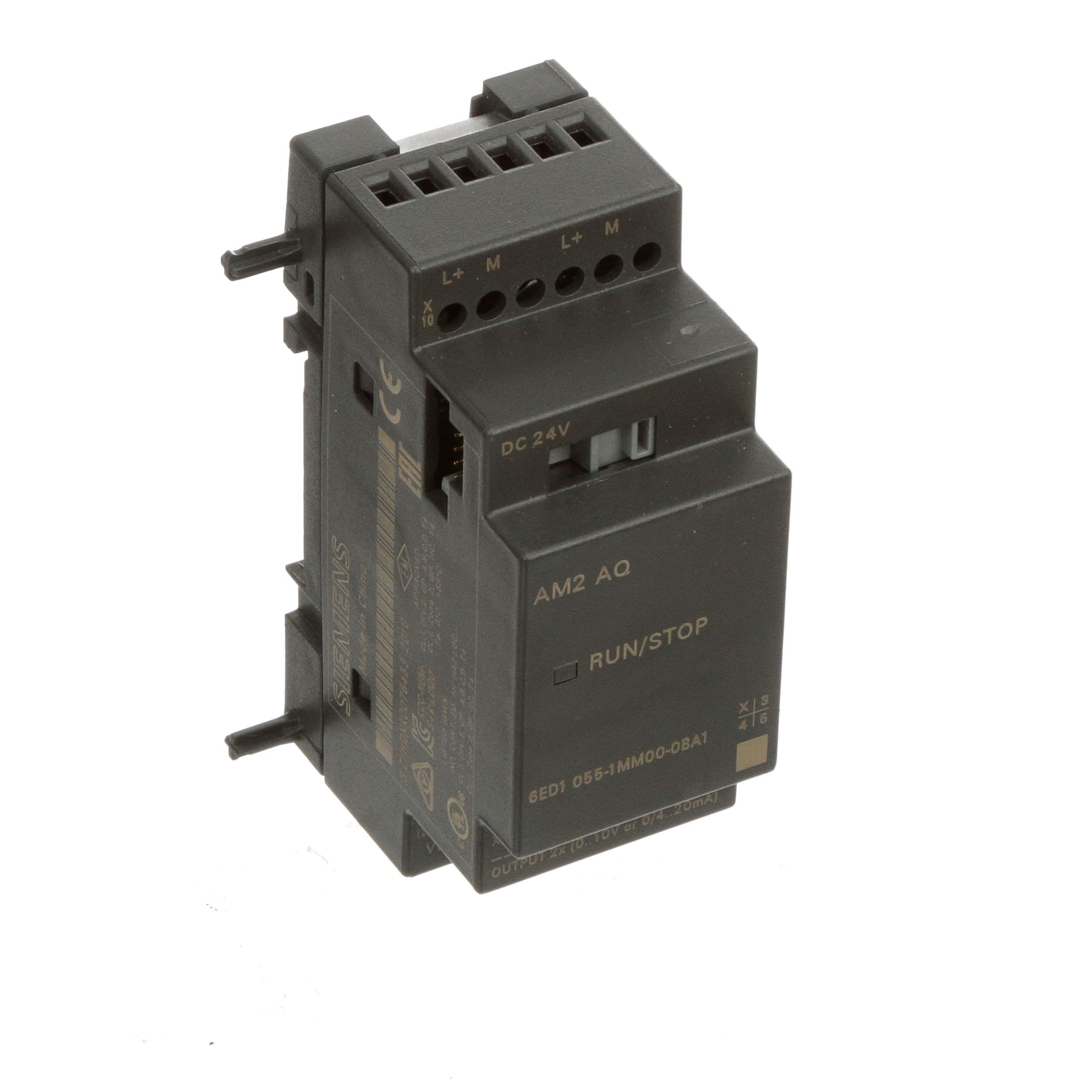

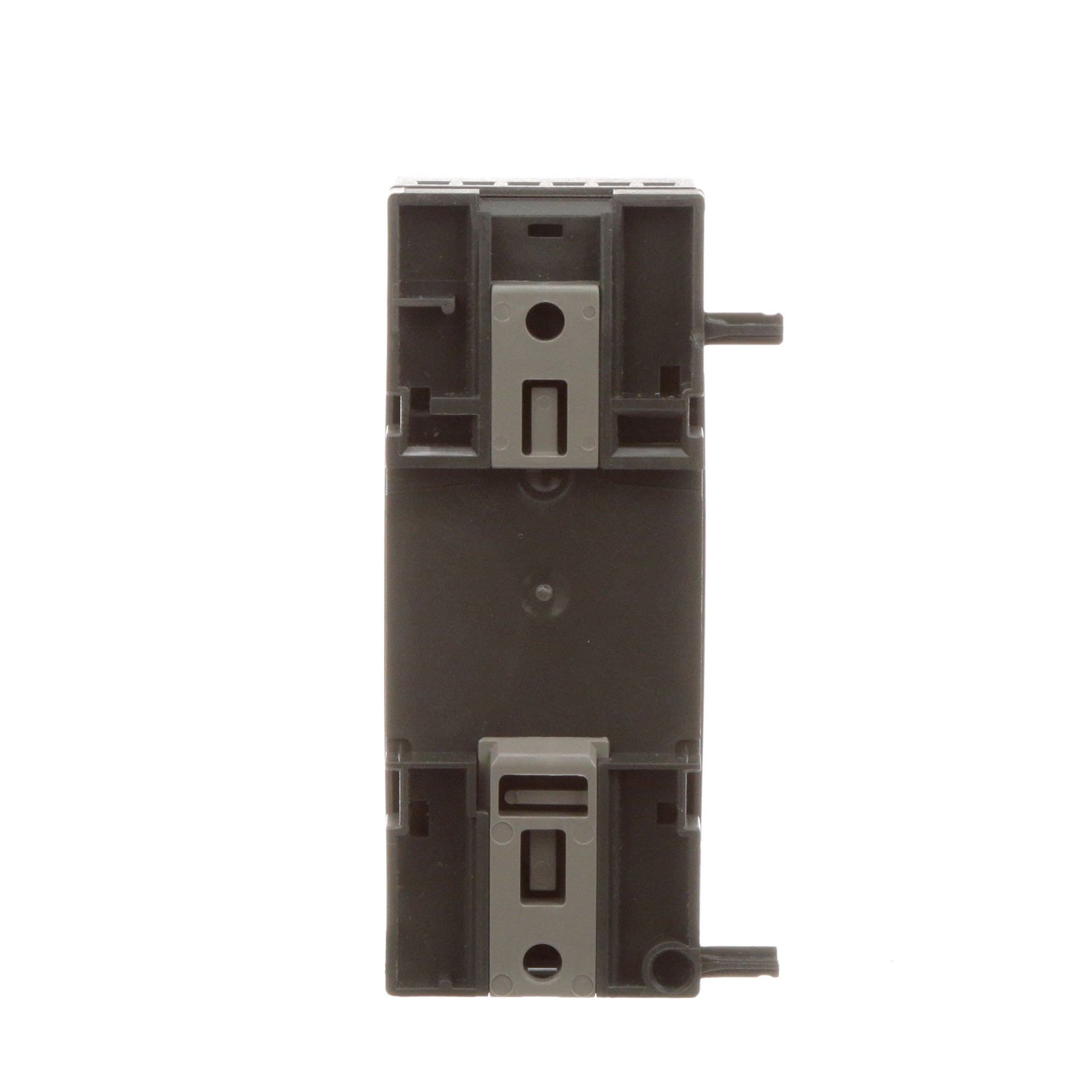

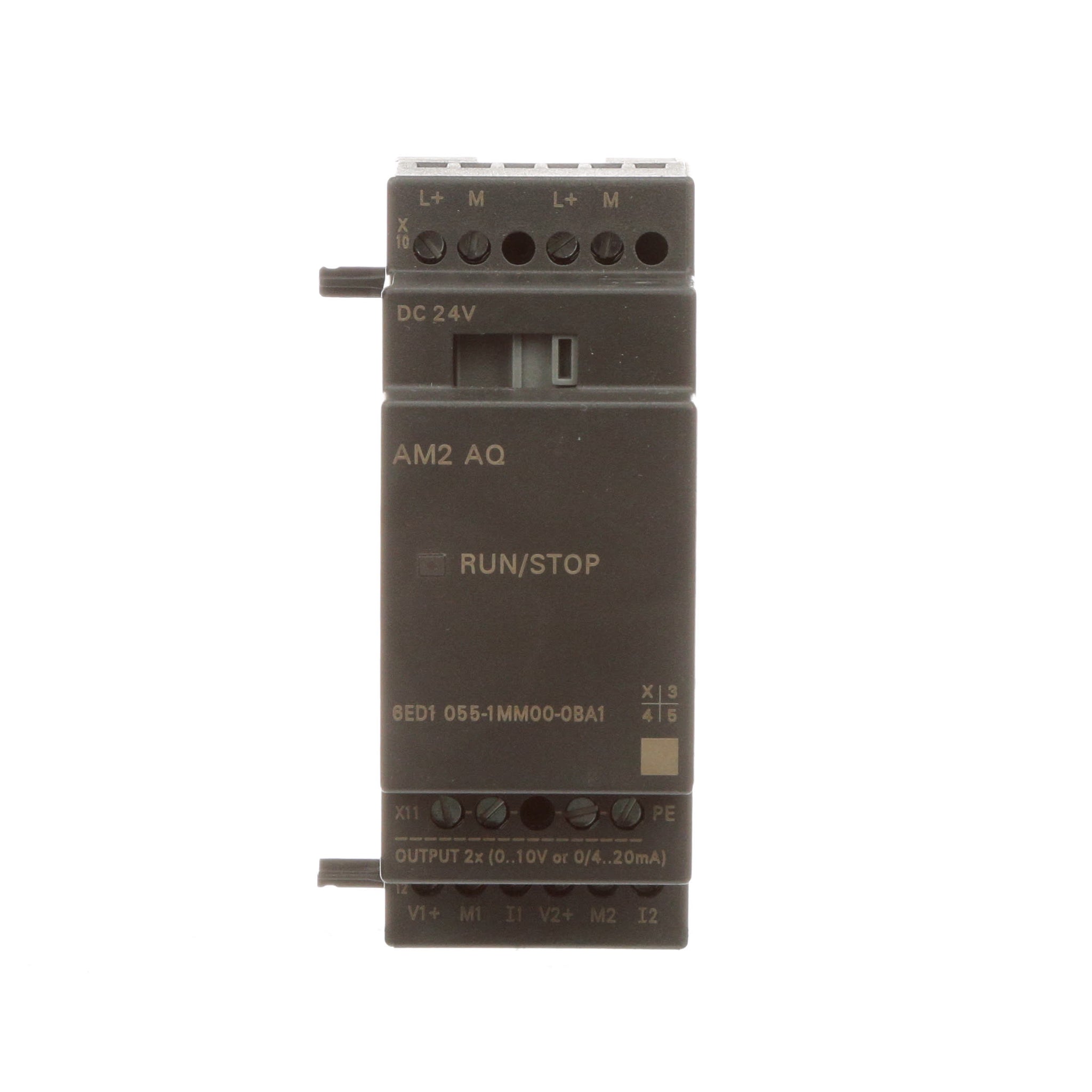

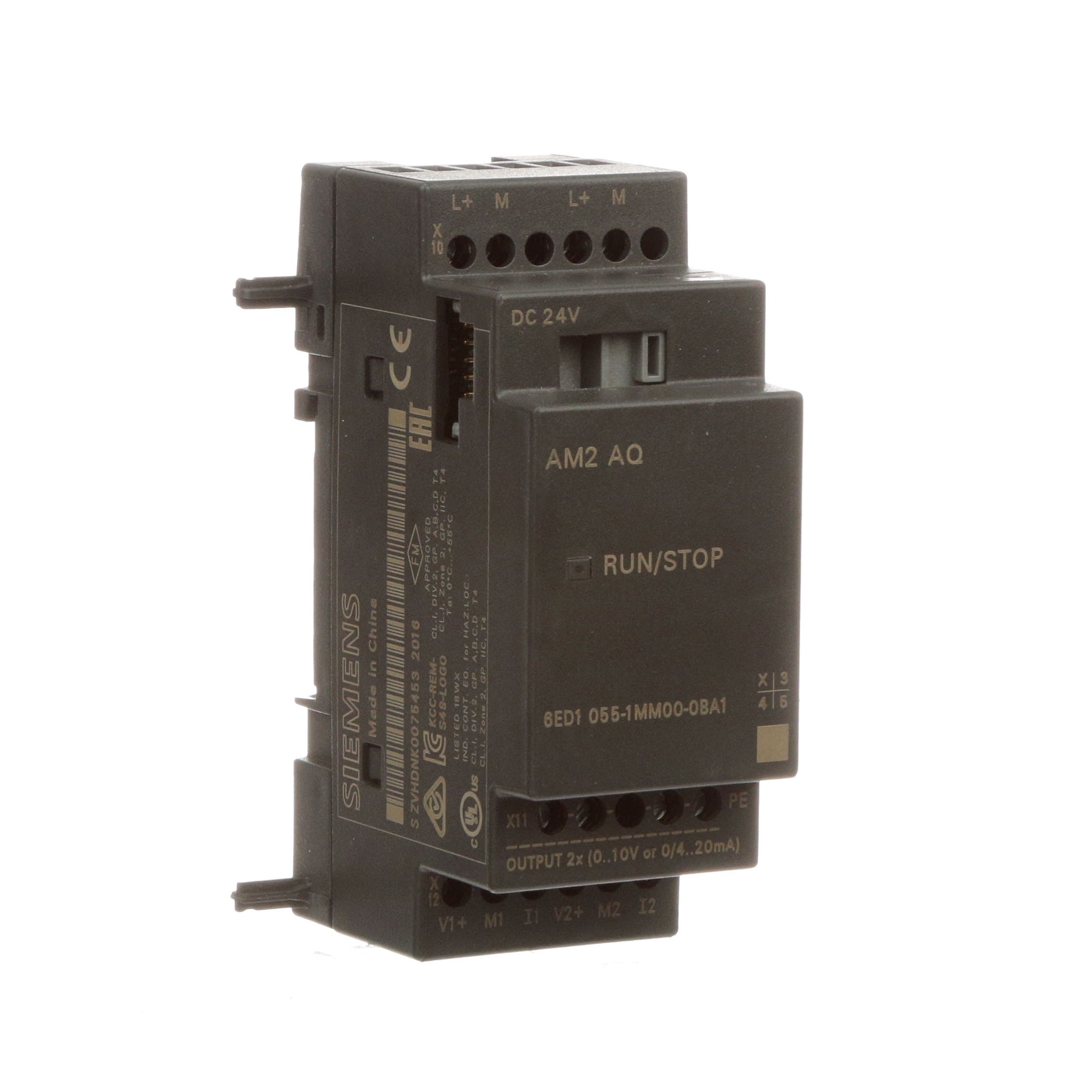

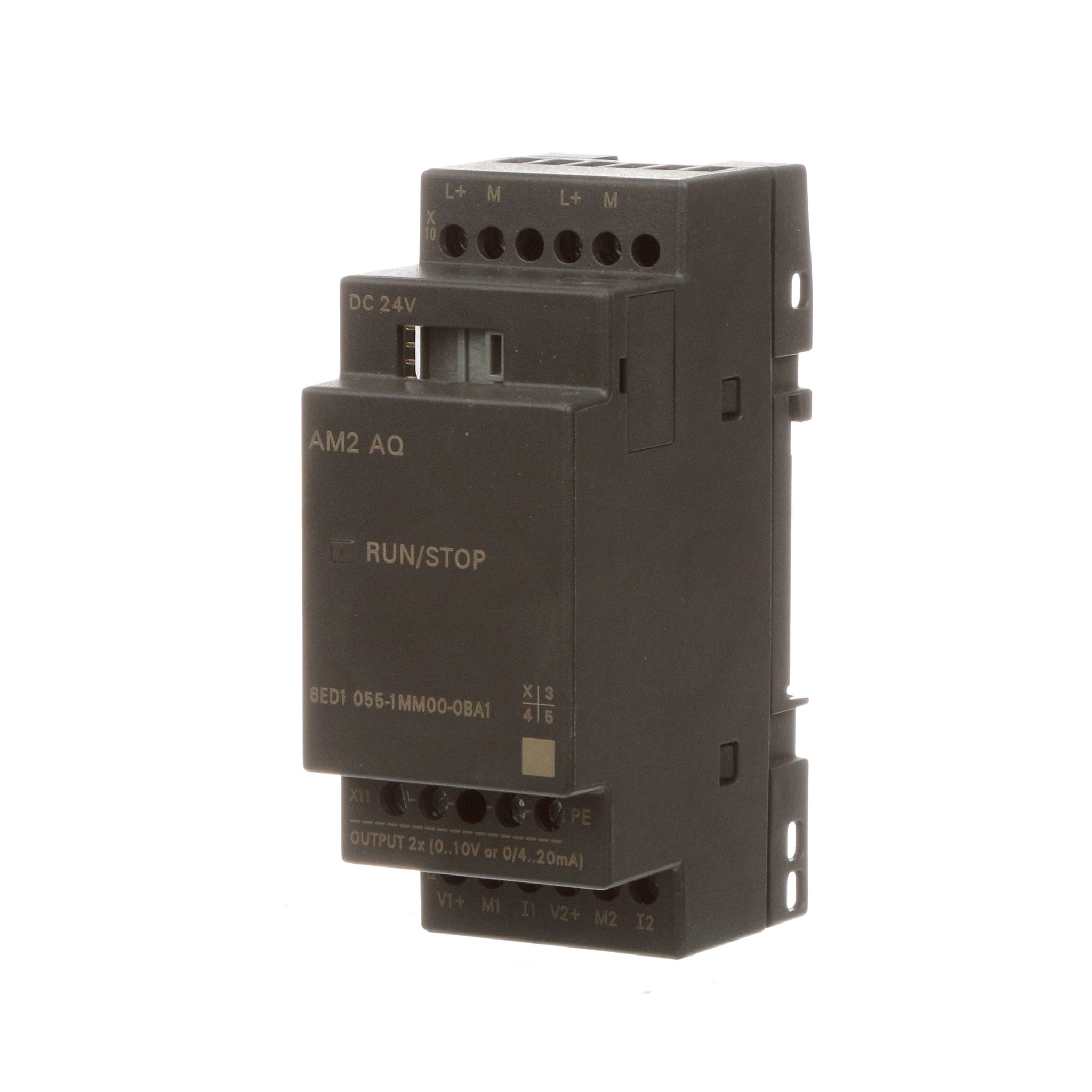

Siemens 6ED10551MM000BA1
| Product Attribute | Attribute Value |
|---|---|
| Current, Supply | 4-20 mA |
| Depth | 2.165" (55mm) |
| Dimensions | 90 x 36 x 55 mm |
| For Use With | Siemens AM2 AQ |
| Input Type | Analog |
| Length | 3.543" (90mm) |
| Mounting Type | DIN Rail Mount |
| Number of Outputs | 2 Output |
| Output Type | Analog |
| Primary Type | Expansion Module |
| Series | 6ED Series |
| Special Features | 0/4 to 20 mA ; 2 Analogue Outputs : 0-10 VDC ; LOGO AM2 AQ Expansion Module ; Supply Voltage 24VDC |
| Standards | CSA Certified, UL Listed, FM Approved, Marine Approved, IEC 61131, VDE 0631, IP20 Rated |
| Supply Voltage | 12-24 VDC |
| Type | Expansion Module |
| Width | 1.417" (36mm) |
Overview
LOGO! — The Leading Logic Module for Micro Automation:
Simple installation, minimum wiring, easy programming: That’s LOGO!, the intelligent logic module from Siemens. The logo control system is perfectly suited for small-scale automation projects and makes life much easier by replacing many time switches and relays, counters and protective relays. Discover the benefits of this unique turnkey logo control logic module control solution for yourself.
LOGO! SoftComfort Overview:
LOGO! from Siemens offers you the support you need at a price you can afford. Perform small-scale automation tasks more quickly and free up space in your switch cabinet. With 8 basic logic functions and 31 special functions, the LOGO! logic module can replace a large number of conventional switching and control devices. The natural logic module choice: LOGO! now is even more versatile for analog value applications and simple control tasks.
Line-Up Overview:
With the logic module LOGO! Siemens offers you the ideal controller for simple automation tasks in industry and building services.The consistently modular design of LOGO! makes it extremely flexible. A wide range of modules allows individual expansion of LOGO! to 24 digital inputs, 16 digital outputs, 8 analog inputs and 2 analog outputs! Communication modules are also available for AS-Interface and KNX (Instabus network for building automation). Now it is also possible to use the analog output module to solve simple closed-loop control tasks. Heating and cooling systems can be designed with the RTD PT100 module using special functions for PI control, ramp response and analog multiplexer. LOGO! exists in the version LOGO! Basic with integrated display and in the version LOGO! Pure without display.
Expansion Modules Overview:
A wide range of modules allows individual expansion of LOGO! to 24 digital inputs,16 digital outputs, 8 analog inputs and 2 analog outputs! Communication modules are also available for AS-Interface and KNX (Instabus network for building automation). Now it is also possible to use the analog output module to solve simple closed-loop control tasks. Heating and cooling systems can be designed with the RTD PT100 module using special functions for PI control, ramp response and analog multiplexer.
