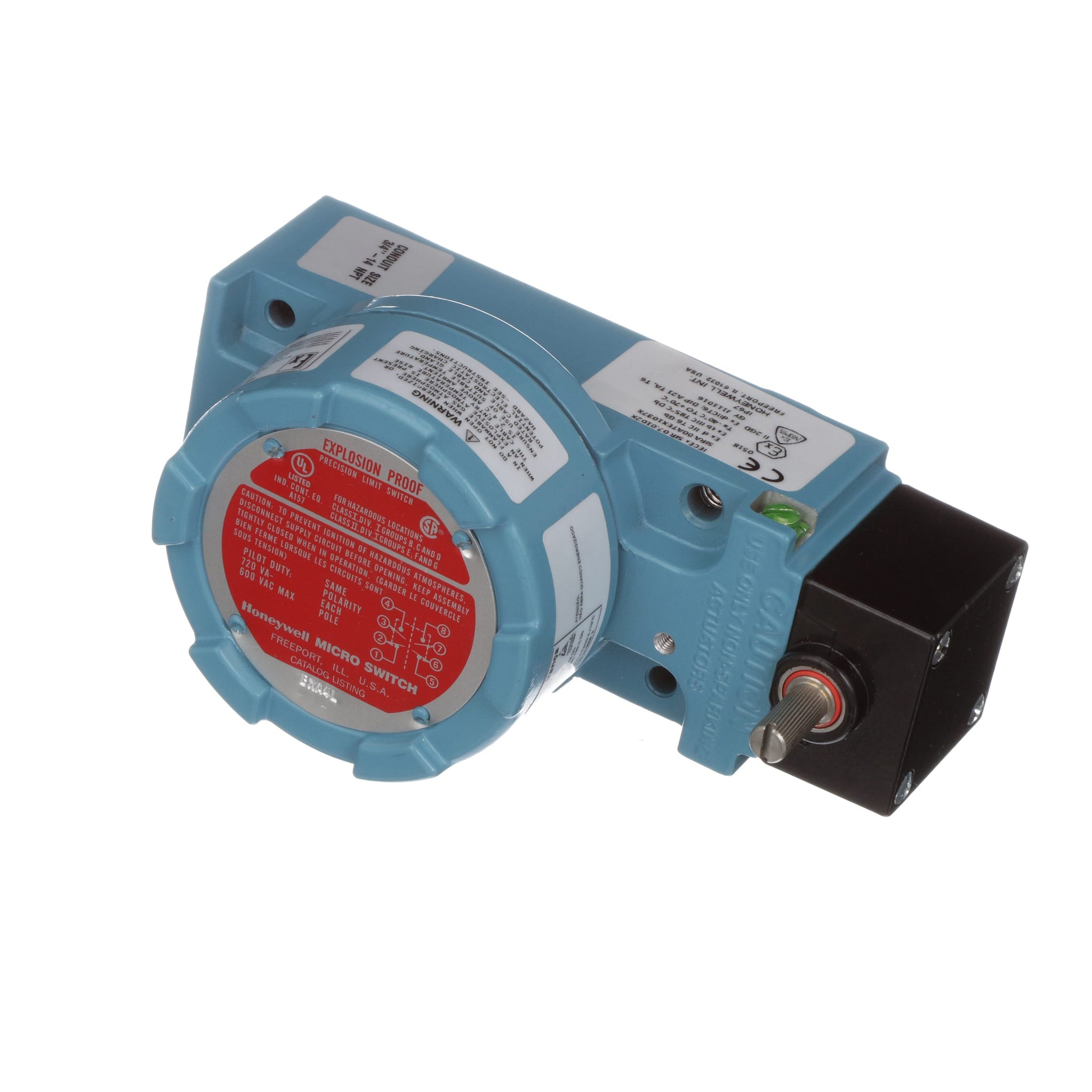

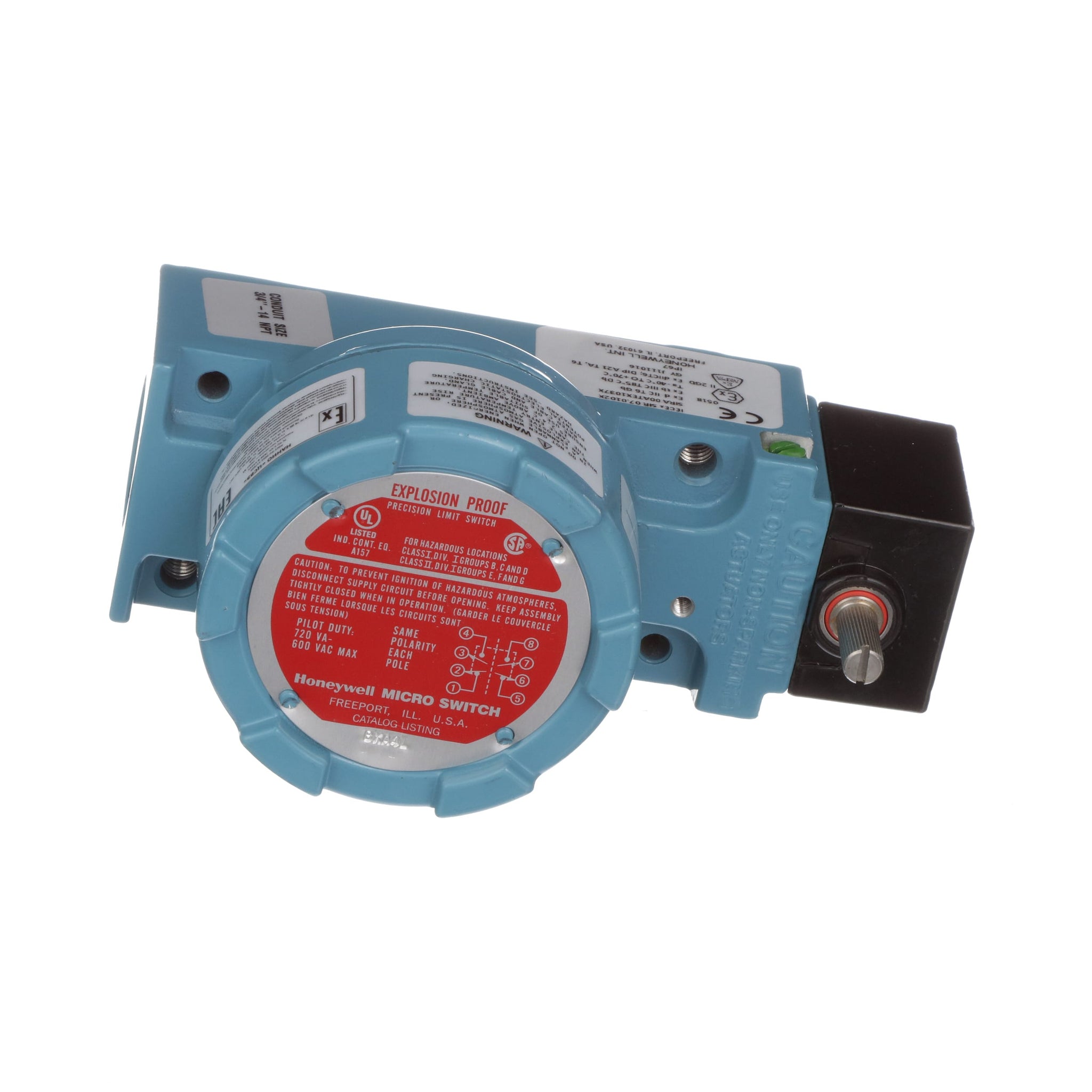

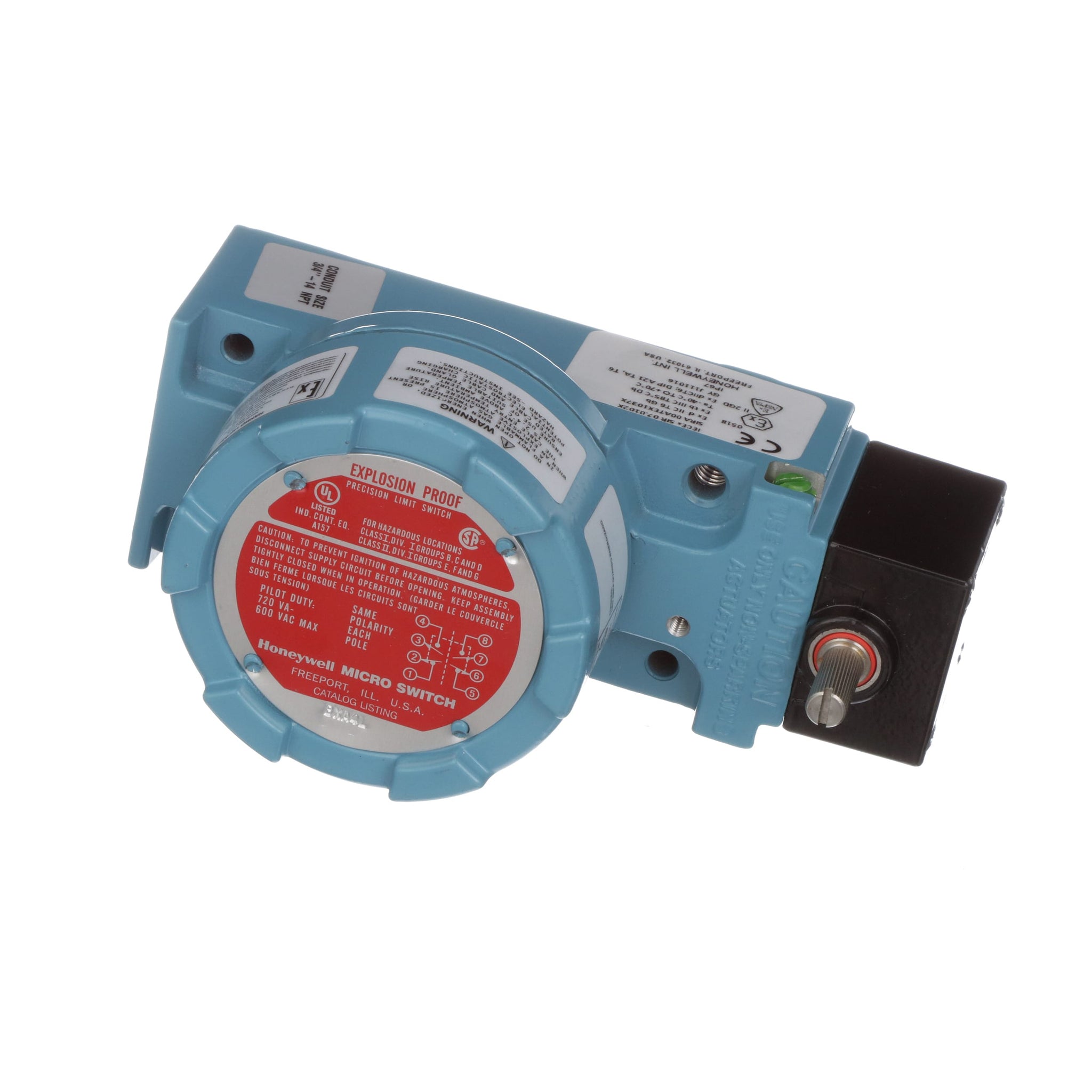

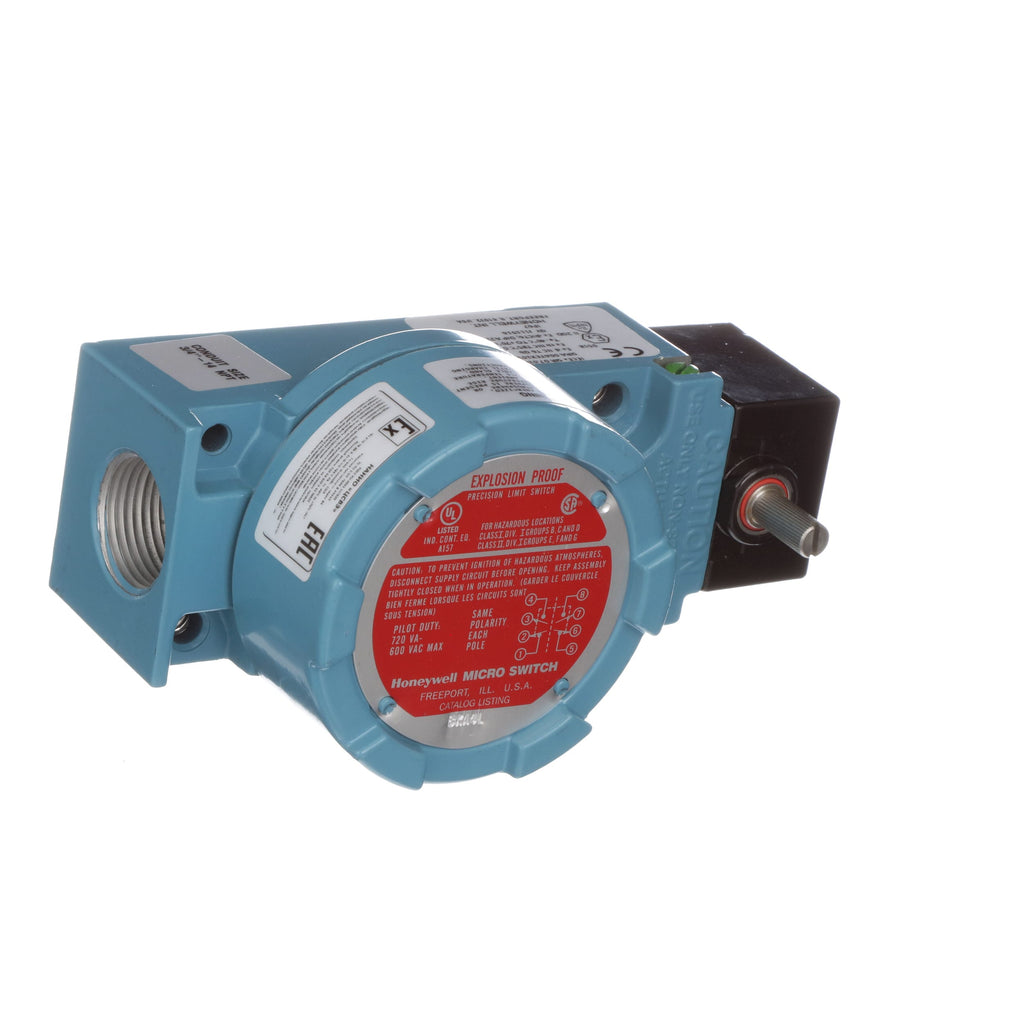

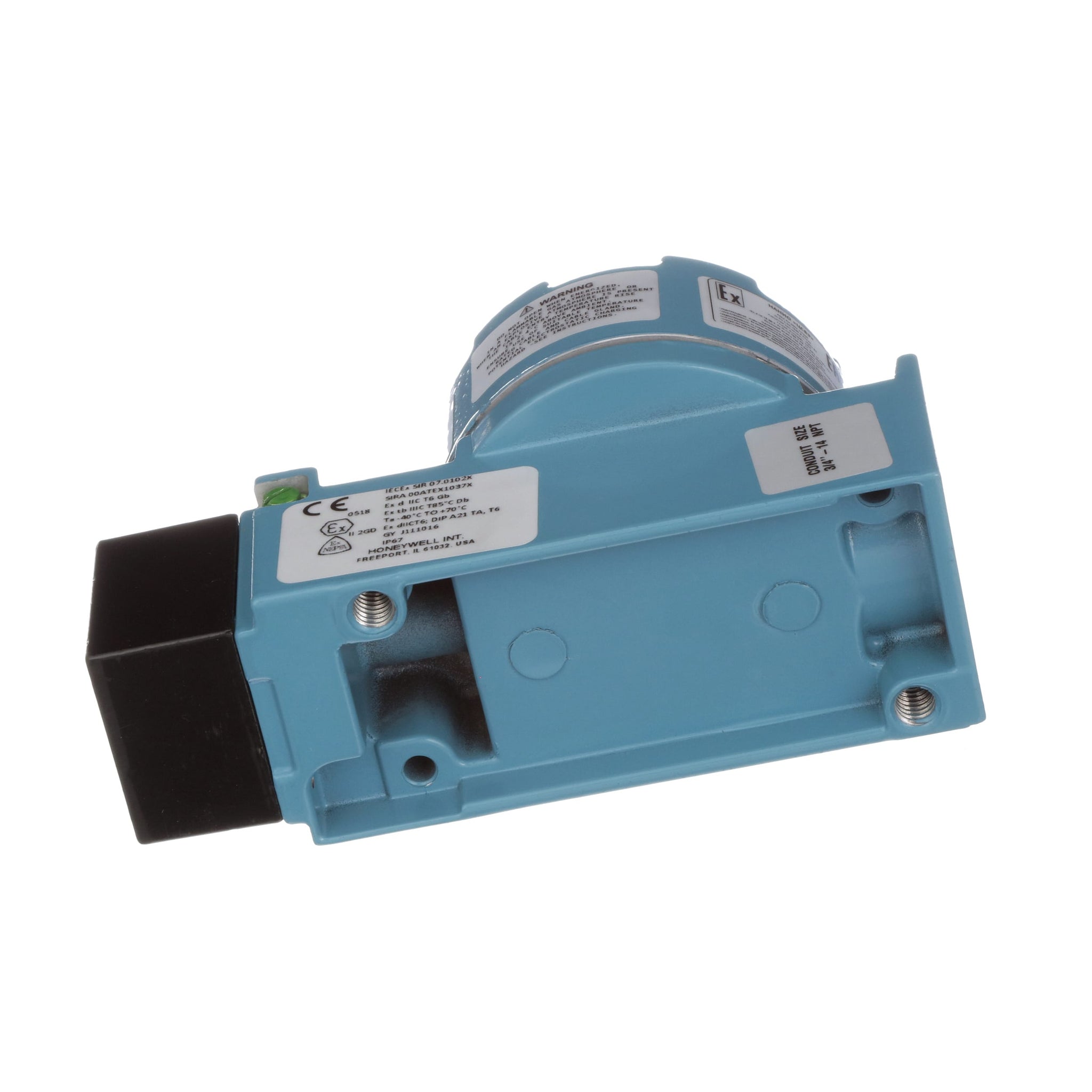

Honeywell BXA4L
| Product Attribute | Attribute Value |
|---|---|
| Actuator Type | Lever |
| Application | For control valves and actuators, offshore drilling, grain elevators, petrochemical plants, chemical plants, waste treatment, paint booths, mining conveyors, pulp and paper coating, hazardous waste handling |
| Body Material | Zinc Die-Cast |
| Case Material | Zinc Die-Cast |
| Contact Form | DPDT |
| Current Rating | 10 A A |
| Family Name | MICRO SWITCH BX ; BX2 Hazardous Area Limit Switches Family |
| Head Type | Lever |
| IP Rating | IP67 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Force | 0,45 N max. [4 in lb max.] |
| Series | BXA/BX2A Series |
| Special Features | Explosion-Proof |
| Standards | UL, cUL, ATEX, IEC Ex |
| Temperature Rating | –40 °C to 70 °C (–40 °F to 158 °F) |
| Termination | 3/4 NPT |
| Type | Limit |
| Voltage Rating | 600 V VAC |
Overview
Honeywell BX | BX2 Series — MICRO SWITCH Explosion-Proof Limit Switches for use in Hazardous Areas:
The MICRO SWITCH BX/BX2 Series are designed for applications in hazardous or explosive environments requiring a rugged, durable switch virtually anywhere in the world. To comply with explosion-proof switching requirements, the flame path within the switch housing is designed to contain and cool escaping hot gases and fumes that could cause an explosion outside of the switch. The MICRO SWITCH BX enclosure is sealed for protection against corrosion, water, dust and oil as defined in NEMA 1, 3, 4, 6, and 13 and IP67 as defined in IEC 529. These enclosures also meet the European Hazardous Locations Designation: II 2 GD, Ex d IIC T6 Gb; 1 Ex d IIC T6 Gb; II 2 D Ex tb IIIC t85C Db. The entire series BX complies with the European Directive on Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres (94/9/EC) commonly referred to as the ATEX Directive. Compliance with the Essential Health and Safety Requirements has been assured by compliance with EN50014 1997 and EN50018 1994.
MICRO SWITCH BX with conduit types 1/2-14NPT, 3/4-14NPT also meet the North American Hazardous Locations Designation: Class I, Groups B, C and D; Class II, Groups E, F and G and comply with UL Standard: UL 894, CSA Standard: C22.2 No. 25-1966, C22.2 No. 30-M1986. The MICRO SWITCH BX is ideal for outdoor use or in adverse environments where a combination of explosion proof plus sealing requirements are needed. To comply with explosion proof requirements the BX has flame paths within the housing, which cool exploding gases below the ignition temperature before they reach explosive gases surrounding the housing. Flame paths on the BX are (1) an extended plunger between the switch cavity and head and (2) the cover-housing threads on the front of the switch.
Regardless of where the equipment or machinery is designed, built, or installed, BX and BX2 Series products carry global agency coverage. Honeywell offers two versions of the BX series switch: the standard BX Series features an aluminum housing, while the BX2 series features a 316L stainless steel housing. The stainless steel housing adds additional resistance against corrosion in applications exposed to aggressive, caustic agents, as well as those often present in chemical processing plants, off-shore/near-shore sites, and other hazardous areas. Both products are weather sealed for outdoor use and designed for explosive gas/dust environments. All operating heads of the BX/BX2 Series are field adjustable at 90° increments.
Features:
Applications:
